Modular system with a cylindrical section, constructed from AISI 316L (L50050) stainless steel, with a metal thickness of 5/10 and a mirror-polished external finish. The laser welding is longitudinal. The ALA INOX MP system is suitable for fume extraction both with the use of the gasket, at a temperature ≤ 200°C (T200) under positive pressure (P1), and without the application of the gasket up to 600°C (T600) under negative pressure (N1). The ALA INOX MP system can be used to convey combustion products from appliances powered by diesel, methane gas, LPG, wood, fuel oils and biofuels in general. It can be installed on all heat generators, including condensing ones. Each element features a male-female connection with a special seat for the insertion of the special heat-resistant, triple-lip silicone seal (included up to a diameter of 160 mm).
The ALA INOX MP system has successfully passed the V2 corrosion resistance test. Total thickness: 0.5 mm.

ELEMENTS IN AISI 316L BA MIRROR POLISHED STAINLESS STEEL, SINGLE WALL

Tee with inspection door
20/53

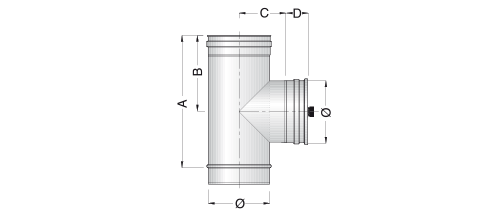

Tee with inspection door

Element to be placed on vertical sections allowing the inspection inside the chimney. The gasket is included in every element up to Ø 160 mm. * The products marked are also available with individually package.
A B C D
J 60 300 150 303 80 180 110 90 70 4
J 60 300 250 303 100 230 130 100 70 4
J 60 300 300 303 110 ▪ 230 130 105 70 4*
J 60 300 350 303 120 230 130 110 70 4
J 60 300 400 303 130 230 130 115 70 4
J 60 300 450 303 140 278 154 120 70 2*
J 60 300 500 303 150 278 154 125 70 2
J 60 300 550 303 160 278 154 130 70 1
J 60 300 650 303 180 445 245 140 70 1
J 60 300 750 303 200 445 245 150 70 1
J 60 300 800 303 250 445 245 175 70 1
J 60 300 850 303 300 445 245 200 70 1
