Modular system with a cylindrical section, constructed from AISI 316L (L50050) stainless steel, with a metal thickness of 5/10 and a mirror-polished external finish. The laser welding is longitudinal. The ALA INOX MP system is suitable for fume extraction both with the use of the gasket, at a temperature ≤ 200°C (T200) under positive pressure (P1), and without the application of the gasket up to 600°C (T600) under negative pressure (N1). The ALA INOX MP system can be used to convey combustion products from appliances powered by diesel, methane gas, LPG, wood, fuel oils and biofuels in general. It can be installed on all heat generators, including condensing ones. Each element features a male-female connection with a special seat for the insertion of the special heat-resistant, triple-lip silicone seal (included up to a diameter of 160 mm).
The ALA INOX MP system has successfully passed the V2 corrosion resistance test. Total thickness: 0.5 mm.

ELEMENTS IN AISI 316L BA MIRROR POLISHED STAINLESS STEEL, SINGLE WALL

Concentric reduction element
21/53

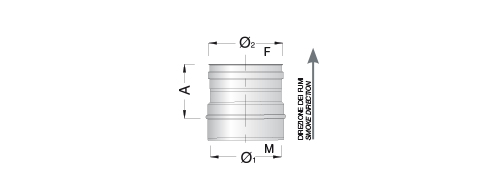

Concentric reduction element

Element allowing the connection between a standard pipe section and a narrower one. It cannot be used on vertical pipe sections since reductions are not admitted in this case. The direction of the smoke is always from the male to the female pipe section. The gasket is included in every element up to Ø 160 mm. * The products marked are also available with individually package.
1M 2F A
J 60 500 250 500 100>80 100 80 107 4
J 60 500 350 500 120>80 120 80 107 4
J 60 500 350 510 120>100 120 100 107 4
J 60 500 350 515 120>110 120 110 107 4*
J 60 500 400 515 130>110 130 110 107 4*
J 60 500 400 520 130>120 130 120 107 4
J 60 500 450 520 140>120 140 120 107 4
J 60 500 450 525 140>130 140 130 107 4
J 60 500 500 525 150>130 150 130 107 4
J 60 500 500 530 150>140 150 140 107 4*
J 60 500 550 530 160>140 160 140 107 4*
J 60 500 550 535 160>150 160 150 107 4*
J 60 500 650 540 180>160 180 160 107 4*
J 60 500 750 550 200>180 200 180 145 4*
J 60 500 800 560 250>200 250 200 145 1
J 60 500 850 570 300>250 300 250 145 1
