Composed of modular circular-section elements with an internal wall in AISI 316L (EN 10088 Gr 1.4404) stainless steel and an external wall in AISI 304 (EN 10088 Gr 1.4301) stainless steel with a BA mirror finish. Insulation is provided by an intermediate layer of high-density rock wool. Each element is equipped with a male-female connection with a special seat for the insertion of a heat-resistant, triple-lip silicone gasket (upon request). Each component is joined by a special clip-on hose clamp with a safety hook, included.
AISI 316L BA STAINLESS STEEL ELEMENTS, DOUBLE WALL

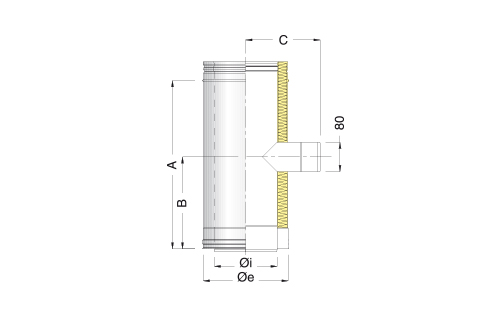

Tee with 80 mm lateral connection
Element allowing the connection between the drainpipe of a ‘C’-type forced-draft unit with 80mm-diameter and the chimney/smoke duct.
 |
 i |
e |
A | B | C |  |
|---|---|---|---|---|---|---|
| D 80 300 250 310 | 100 | 150 | 250 | 125 | 185 | 1 |
| D 80 300 400 310 | 130 | 194 | 250 | 125 | 205 | 1 |
| D 80 300 500 310 | 150 | 214 | 250 | 125 | 215 | 1 |
| D 80 300 650 310 | 180 | 244 | 250 | 125 | 225 | 1 |
| D 80 300 750 310 | 200 | 264 | 250 | 125 | 235 | 1 |
| D 80 300 800 310 | 250 | 314 | 250 | 125 | 285 | 1 |
| D 80 300 850 310 | 300 | 364 | 250 | 125 | 340 | 1 |
