Flue pipes for wood-burning stoves are laser-welded and coated, both inside and out, with porcelain enamel.
The innovative GASTOP® interlocking fastening system ensures a perfect seal between the various elements and flue gases, making the flue highly safe and reliable. The application of the exclusive porcelain enamel coating called TERM® and the increased thickness of the steel allow ALA SpA to ensure, for ALA SMALTO aeternum flue pipes, colorfastness, greater resistance to acid condensation, high temperatures, scratches, and rust. Easy connection to any type of stove thanks to the various universal connections. Available in white, brown, glossy black, matte black, and light ivory. CE certified according to UNI EN 1856-2, UNI EN 1443 standards with temperature resistance T600, pressure class N1, condensation resistance W* and corrosion resistance class V2. Total thickness 0.8 mm.
*wet operating mode without gaskets and with “water” anti-condensation installation.

SMOKE DUCTS FOR WOOD-BURNING STOVES WELDED WITH LASER TECHNOLOGY

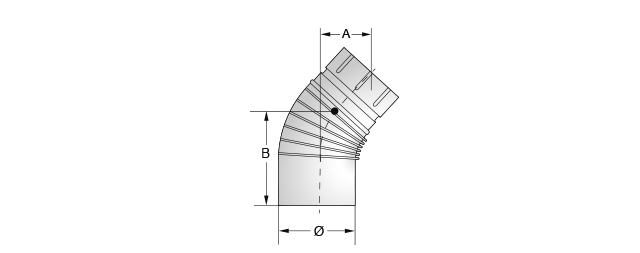

Porcelain enamelled pleated elbow
25/40

Porcelain enamelled pleated elbow

AVAILABLE COLORS

To order, replace the code in table XX with the number of the desired color

A B
Q XX 200 250 260 100 84 184 12
Q XX 200 350 260 120 109 197 12
Q XX 200 400 260 130 98 187 6
Q XX 200 450 260 140 111 213 6
Q XX 200 500 260 150 ▲ 119 224 6
Q XX 200 650 260 180 ▲ 114 225 4
Q XX 200 750 260 200 115 230 4
