Composed of modular circular-section elements with an internal wall in AISI 316L (EN 10088 Gr 1.4404) stainless steel and an external wall in AISI 304 (EN 10088 Gr 1.4301) stainless steel with a BA mirror finish. Insulation is provided by an intermediate layer of high-density rock wool. Each element is equipped with a male-female connection with a special seat for the insertion of a heat-resistant, triple-lip silicone gasket (upon request). Each component is joined by a special clip-on hose clamp with a safety hook, included.
AISI 316L BA STAINLESS STEEL ELEMENTS, DOUBLE WALL

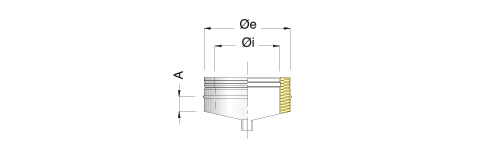

Pipe end plug
Element to be used for the temporary closing of the Tee unions at the base of the smoke duct (for solid combustible).
 |
 i |
e |
A |  |
|---|---|---|---|---|
| D 80 750 150 761 | 80 | 130 | 42 | 1 |
| D 80 750 250 761 | 100 | 150 | 42 | 1 |
| D 80 750 400 761 | 130 | 194 | 42 | 1 |
| D 80 750 500 761 | 150 | 214 | 42 | 1 |
| D 80 750 650 761 | 180 | 244 | 42 | 1 |
| D 80 750 750 761 | 200 | 264 | 42 | 1 |
| D 80 750 800 761 | 250 | 314 | 42 | 1 |
| D 80 750 850 761 | 300 | 364 | 42 | 1 |
