Composed of modular circular-section elements with an internal wall in AISI 316L (EN 10088 Gr 1.4404) stainless steel and an external wall in AISI 304 (EN 10088 Gr 1.4301) stainless steel with a BA mirror finish. Insulation is provided by an intermediate layer of high-density rock wool. Each element is equipped with a male-female connection with a special seat for the insertion of a heat-resistant, triple-lip silicone gasket (upon request). Each component is joined by a special clip-on hose clamp with a safety hook, included.
AISI 316L BA STAINLESS STEEL ELEMENTS, DOUBLE WALL

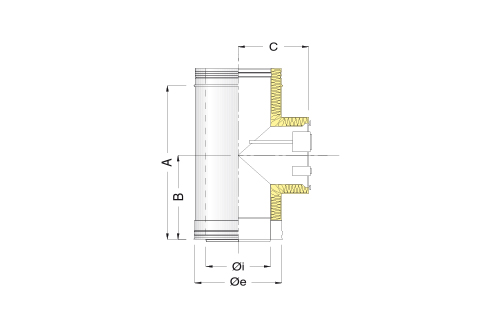

LINEAR ELEMENT with combustion control plug and thermometer
Element to be placed in either horizontal or vertical pipe sections, allowing to draw combustion smokes and measure the temperature for their complete chemical and thermal analysis, as requested by the current regulations.
 |
 i |
e |
A | B | C |  |
|---|---|---|---|---|---|---|
| D 80 120 400 161 | 130 | 194 | 450 | 230 | 147 | 1 |
| D 80 120 500 161 | 150 | 214 | 450 | 230 | 157 | 1 |
| D 80 120 650 161 | 180 | 244 | 450 | 230 | 172 | 1 |
| D 80 120 750 161 | 200 | 264 | 450 | 230 | 182 | 1 |
| D 80 120 800 161 | 250 | 314 | 450 | 230 | 207 | 1 |
| D 80 120 850 161 | 300 | 364 | 450 | 230 | 232 | 1 |
