Composed of modular circular-section elements with an internal wall in AISI 316L (EN 10088 Gr 1.4404) stainless steel and an external wall in AISI 304 (EN 10088 Gr 1.4301) stainless steel with a BA mirror finish. Insulation is provided by an intermediate layer of high-density rock wool. Each element is equipped with a male-female connection with a special seat for the insertion of a heat-resistant, triple-lip silicone gasket (upon request). Each component is joined by a special clip-on hose clamp with a safety hook, included.
AISI 316L BA STAINLESS STEEL ELEMENTS, DOUBLE WALL
linear element

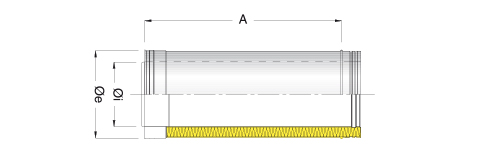

Modular linear pipe of standard length to be used for the construction of either vertical or sub-horizontal pipe sections.
H 500 mm
 |
 i |
e |
A |  |
|---|---|---|---|---|
| D 80 100 150 110 | 80 | 130 | 450 | 1 |
| D 80 100 250 110 | 100 | 150 | 450 | 1 |
| D 80 100 400 110 | 130 | 194 | 450 | 1 |
| D 80 100 500 110 | 150 | 214 | 450 | 1 |
| D 80 100 650 110 | 180 | 244 | 450 | 1 |
| D 80 100 750 110 | 200 | 264 | 450 | 1 |
| D 80 100 800 110 | 250 | 314 | 450 | 1 |
| D 80 100 850 110 | 300 | 364 | 450 | 1 |
