Modular system with a cylindrical section, constructed from AISI 316L (L50050) stainless steel, with a metal thickness of 5/10 and a mirror-polished external finish. The laser welding is longitudinal. The ALA INOX MP system is suitable for fume extraction both with the use of the gasket, at a temperature ≤ 200°C (T200) under positive pressure (P1), and without the application of the gasket up to 600°C (T600) under negative pressure (N1). The ALA INOX MP system can be used to convey combustion products from appliances powered by diesel, methane gas, LPG, wood, fuel oils and biofuels in general. It can be installed on all heat generators, including condensing ones. Each element features a male-female connection with a special seat for the insertion of the special heat-resistant, triple-lip silicone seal (included up to a diameter of 160 mm).
The ALA INOX MP system has successfully passed the V2 corrosion resistance test. Total thickness: 0.5 mm.
ELEMENTS IN AISI 316L BA MIRROR POLISHED STAINLESS STEEL, SINGLE WALL

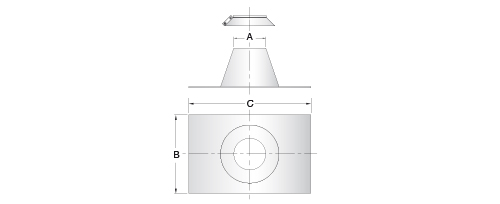

Flat chimney weathering
Element to be placed on a flat outer surface in order to prevent water seepage and that offers at the same time a good aesthetic solution in correspondence with the smoke flue exit from the roof. Including chimney weathering clamp.
 |
 |
A |
B x C |
 |
|
J 60 450 150 452 |
80 |
100 |
700 x 1000 |
1 |
|
J 60 450 250 452 |
100 |
120 |
700 x 1000 |
1 |
|
J 60 450 350 452 |
120 |
140 |
700 x 1000 |
1 |
|
J 60 450 400 452 |
130 |
150 |
700 x 1000 |
1 |
|
J 60 450 450 452 |
140 |
160 |
700 x 1000 |
1 |
|
J 60 450 500 452 |
150 |
170 |
700 x 1000 |
1 |
|
J 60 450 550 452 |
160 |
180 |
700 x 1000 |
1 |
|
J 60 450 650 452 |
180 |
200 |
700 x 1000 |
1 |
|
J 60 450 750 452 |
200 |
220 |
700 x 1000 |
1 |
|
J 60 450 800 452 |
250 |
270 |
700 x 1000 |
1 |
|
J 60 450 850 452 |
300 |
320 |
700 x 1000 |
1 |
