Flue pipes for wood-burning stoves are laser-welded and coated, both inside and out, with porcelain enamel.
The innovative GASTOP® interlocking fastening system ensures a perfect seal between the various elements and flue gases, making the flue highly safe and reliable. The application of the exclusive porcelain enamel coating called TERM® and the increased thickness of the steel allow ALA SpA to ensure, for ALA SMALTO aeternum flue pipes, colorfastness, greater resistance to acid condensation, high temperatures, scratches, and rust. Easy connection to any type of stove thanks to the various universal connections. Available in white, brown, glossy black, matte black, and light ivory. CE certified according to UNI EN 1856-2, UNI EN 1443 standards with temperature resistance T600, pressure class N1, condensation resistance W* and corrosion resistance class V2. Total thickness 0.8 mm.
*wet operating mode without gaskets and with “water” anti-condensation installation.

SMOKE DUCTS FOR WOOD-BURNING STOVES WELDED WITH LASER TECHNOLOGY

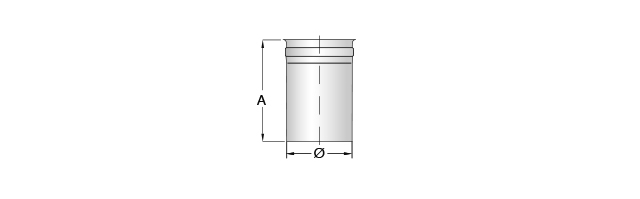

CONNECTING ALA INOX MP ELEMENT BETWEEN ALA SMALTO AETERNUM AND INOX MALE SINGLE WALL PIPE SECTION
12/40

CONNECTING ALA INOX MP ELEMENT BETWEEN ALA SMALTO AETERNUM AND INOX MALE SINGLE WALL PIPE SECTION

316L stainless steel element, for the connection between ALA SMALTO aeternum lines with ALA INOX mp to be used together with a tee union.

H 140 mm

AVAILABLE COLORS

To order, replace the code in table XX with the number of the desired color

A
J 60 300 250 332 100 140 2
J 60 300 350 332 120 140 2
J 60 300 400 332 130 140 2
J 60 300 450 332 140 140 2
J 60 300 500 332 150 140 2
J 60 300 650 332 180 140 2
J 60 300 750 332 200 140 2
