Composed of modular circular-section elements with an internal wall in AISI 316L (EN 10088 Gr 1.4404) stainless steel and an external wall in AISI 304 (EN 10088 Gr 1.4301) stainless steel with a BA mirror finish. Insulation is provided by an intermediate layer of high-density rock wool. Each element is equipped with a male-female connection with a special seat for the insertion of a heat-resistant, triple-lip silicone gasket (upon request). Each component is joined by a special clip-on hose clamp with a safety hook, included.
AISI 316L BA STAINLESS STEEL ELEMENTS, DOUBLE WALL
2 sectors elbow

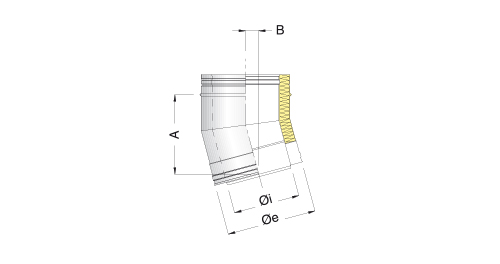

15° inclined elbow realized with 2 sectors perfectly welded. It can be used for any application for performing either vertical or sub-horizontal movements according to the lengths indicated above.
 |
 i |
e |
A | B |  |
|---|---|---|---|---|---|
| D 80 200 150 280 | 80 | 130 | 133 | 15 | 1 |
| D 80 200 250 280 | 100 | 150 | 133 | 15 | 1 |
| D 80 200 400 280 | 130 | 194 | 131 | 18 | 1 |
| D 80 200 500 280 | 150 | 214 | 135 | 19 | 1 |
| D 80 200 650 280 | 180 | 244 | 138 | 19 | 1 |
| D 80 200 750 280 | 200 | 264 | 141 | 20 | 1 |
| D 80 200 800 280 | 250 | 314 | 147 | 20 | 1 |
| D 80 200 850 280 | 300 | 364 | 154 | 21 | 1 |
